MS1820

Multi-Functions Video Processor

MS1820 Features

* Analog Input

* 10-bit triple-ADC

* Maximum analog sampling rate up to 165MSPS

* Supports analog input range: 0.45V ~ 1.1V (P-P)

* Up to three analog input channels

* 3 to 1 input mux

* Supports RGBHV/RGBS/YCb

MS1820 General Description

MS1820 Preliminary Data Sheet The MS1820 is a multi-functions video processor chip. It consists of 10-bit triple-ADC module, TV encoder module, 10-bit triple-DAC module and embedded OSD function. It can receive interlaced or progressive video input and graphic input. It is capable of advanced de-i.

MS1820 Datasheet (232.66 KB)

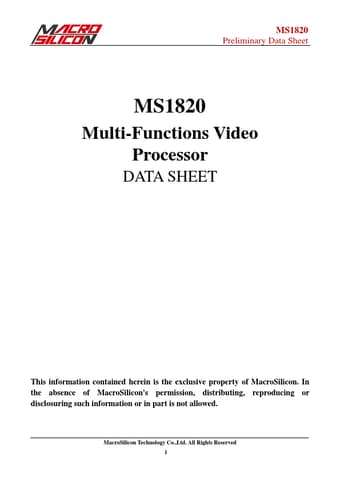

Preview of MS1820 PDF

Datasheet Details

Part number:

MS1820

Manufacturer:

MacroSilicon

File Size:

232.66 KB

Description:

Multi-functions video processor.
MS1820 Preliminary Data Sheet MS1820 Multi-Functions Video Processor DATA SHEET This information contained herein is the exclusive property of MacroSi.
