JXI5020

The JXI5020 is 16-Channel Constant Current LED Sink Driver designed by Macroblock.

Product Overview

Macroblock

Datasheet Details

Part number	JXI5020
Manufacturer	Macroblock
File Size	322.81 KB
Description	16-Channel Constant Current LED Sink Driver
Datasheet	JXI5020-Macroblock.pdf
Additional preview pages of the JXI5020 datasheet.

Product details

Description

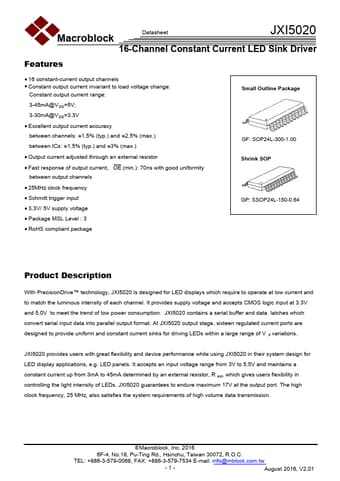

With PrecisionDrive™ technology, JXI5020 is designed for LED displays which require to operate at low current and to match the luminous intensity of each channel.

Features

16 constant-current output channels.
Constant output current invariant to load voltage change: Constant output current range: 3-45mA@V DD=5V; 3-30mA@V DD=3.3V.
Excellent output current accuracy between channels: ±1.5% (typ. ) and ±2.5% (max. ) between ICs: ±1.5% (typ. ) and ±3% (max. ).
Output current adjusted through an external resistor.
Fast response of output current, OE (min. ): 70ns with good uniformity between output channels.
25MHz clock frequency.
Schmitt.
