MBI5025 16-channel Constant Current LED Sink Driver

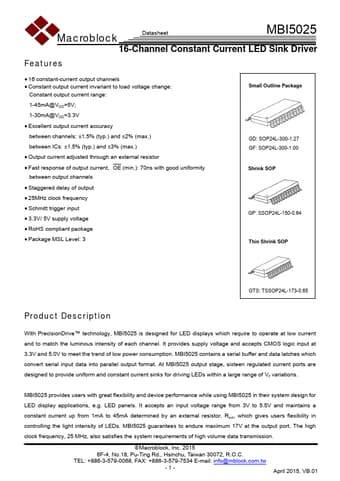

📥 Download Datasheet  Datasheet Preview Page 1

Description

Macroblock Datasheet MBI5025 16-Channel Constant Current LED Sink Driver .
With PrecisionDrive™ technology, MBI5025 is designed for LED displays which require to operate at low current and to match the luminous intensity of e.

📥 Download Datasheet

Preview of MBI5025 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
MBI5025
Manufacturer
Macroblock
File Size
302.20 KB
Datasheet
MBI5025_Macroblock.pdf
Description
16-channel Constant Current LED Sink Driver

Features

* 16 constant-current output channels
* Constant output current invariant to load voltage change: Constant output current range: 1-45mA@VDD=5V; 1-30mA@VDD=3.3V
* Excellent output current accuracy between channels: ±1.5% (typ. ) and ±2% (max. ) between ICs: ±1.5% (typ. ) and ±3% (max. )

Applications

* e. g. LED panels. It accepts an input voltage range from 3V to 5.5V and maintains a constant current up from 1mA to 45mA determined by an external resistor, Rext, which gives users flexibility in controlling the light intensity of LEDs. MBI5025 guarantees to endure maximum 17V at the output port. Th
