MBI5120

16-Channel Constant Current LED Sink Driver

MBI5120 Features

* 16 constant-current output channels

* Constant output current invariant to load voltage change: Constant output current range: 3-25mA@VDD=5V; 3-10mA@VDD=3.3V

* Excellent output current accuracy between channels: ±1.5% (typ.) and ±2% (max.) between ICs: ±1.5% (typ.) and ±3% (max.)

MBI5120 General Description

With PrecisionDrive™ technology, MBI5120 is designed for LED displays which require to operate at low current and to match the luminous intensity of each channel. It provides supply voltage and accepts CMOS logic input at 3.3V and 5.0V to meet the trend of low power consumption. MBI5120 contains a s.

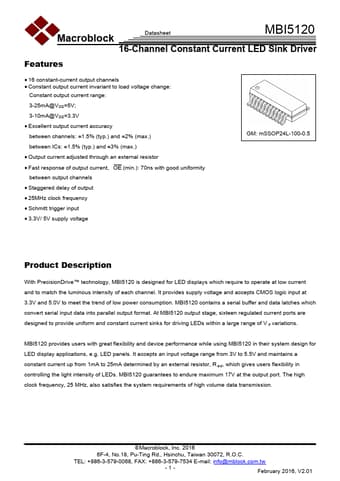

MBI5120 Datasheet (410.85 KB)

Preview of MBI5120 PDF

Datasheet Details

Part number:

MBI5120

Manufacturer:

Macroblock

File Size:

410.85 KB

Description:

16-channel constant current led sink driver.
