26LV800BTC Datasheet - Macronix International

MX26LV800BTC

26LV800BTC Features

* Extended single - supply voltage range 3.0V to 3.6V

* 1,048,576 x 8/524,288 x 16 switchable

* Single power supply operation - 3.0V only operation for read, erase and program operation

* Fast access time: 55/70ns

* Low power consumption - 30mA maximum active

26LV800BTC General Description

The MX26LV800T/B is a 8-mega bit high speed Flash memory organized as 1M bytes of 8 bits or 512K words of 16 bits. MXIC's high speed Flash memories offer the most cost-effective and reliable read/write non-volatile random access memory. The MX26LV800T/B is packaged in 48-pin TSOP, and 48-ball CSP. I.

26LV800BTC Datasheet (624.76 KB)

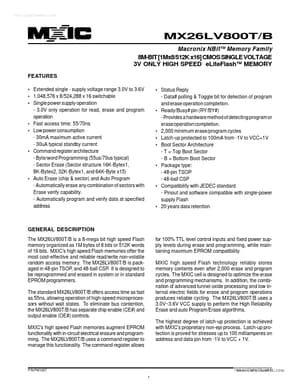

26LV800BTC Datasheet Preview — Preview of 26LV800BTC PDF

Datasheet Details

Part number:

26LV800BTC

Manufacturer:

Macronix International

File Size:

624.76 KB

Description:

mx26lv800btc.
www.DataSheet4U.com MX26LV800T/B Macronix NBit TM Memory Family 8M-BIT [1Mx8/512K x16] CMOS SINGLE VOLTAGE 3V ONLY HIGH SPEED eLiteFlashTM MEMORY FEA.
