MX25L1005 Datasheet - Macronix International

MX25L1005 1M-BIT [x 1] CMOS SERIAL FLASH

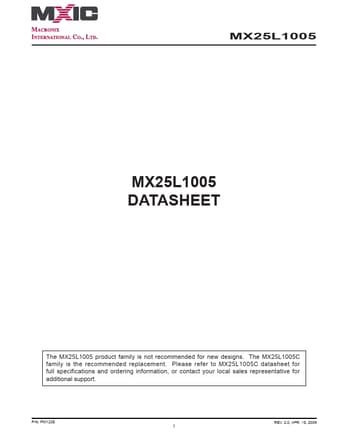

MX25L1005 MX25L1005 DATASHEET The MX25L1005 product family is not recommended for new designs. The MX25L1005C family is the recommended replacement. Please refer to MX25L1005C datasheet for full specifications and ordering information, or contact your local sales representative for additional support. P/N: PM1238 REV. 2.0, APR. 15, 2009 1 MX25L1005 1M-BIT [x 1] CMOS SERIAL FLASH The MX25L1005 product family is not recommended for new designs. The MX25L1005C family is the recommended replacem.

MX25L1005 Features

* GENERAL

* Serial Peripheral Interface (SPI) compatible

* Mode 0 and Mode 3

* 1,048,576 x 1 bit structure

* 32 Equal Sectors with 4K byte each - Any Sector can be erased individually

* 2 Equal Blocks with 64K byte each - Any Block can be erased individuall

MX25L1005_MacronixInternational.pdf

Preview of MX25L1005 PDF
MX25L1005 Datasheet Preview Page 2 MX25L1005 Datasheet Preview Page 3

Datasheet Details

Part number:

MX25L1005

Manufacturer:

Macronix International

File Size:

1.23 MB

Description:

1m-bit [x 1] cmos serial flash.
