MX25L6402 64M-BIT [x 1] CMOS SERIAL eLite FlashTM MEMORY

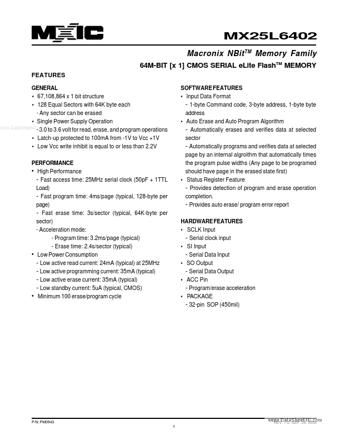

📥 Download Datasheet  Datasheet Preview Page 1

Description

MX25L6402 Macronix NBit TM Memory Family 64M-BIT [x 1] CMOS SERIAL eLite FlashTM MEMORY .
The MX25L6402 is a CMOS 67,108,864 bit serial MTP EEPROM, which is configured as 8,388,608 x 8 internally.

📥 Download Datasheet

Preview of MX25L6402 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
MX25L6402
Manufacturer
Macronix International
File Size
361.95 KB
Datasheet
MX25L6402_MacronixInternational.pdf
Description
64M-BIT [x 1] CMOS SERIAL eLite FlashTM MEMORY

Features

* GENERAL
* 67,108,864 x 1 bit structure
* 128 Equal Sectors with 64K byte each - Any sector can be erased
* Single Power Supply Operation www. DataSheet4U. com - 3.0 to 3.6 volt for read, erase, and program operations
* Latch-up protected to 100mA from -1V to Vcc +1V
