MT2501 - P-Channel MOSFET

Matrix Microtech

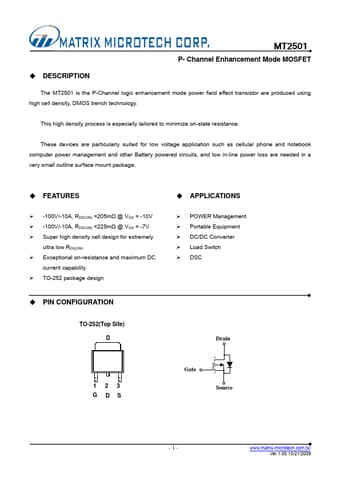

MT2501 Datasheet Preview — Preview of MT2501 PDF

Datasheet Details

Part number	MT2501
Manufacturer	Matrix Microtech
File Size	363.05 KB
Description	P-Channel MOSFET
Datasheet	MT2501-MatrixMicrotech.pdf

MT2501 Product details

Description

MT2501 P- Channel Enhancement Mode MOSFET The MT2501 is the P-Channel logic enhancement mode power field effect transistor are produced using high cell density, DMOS trench technology.This high density process is especially tailored to minimize on-state resistance.These devices are particularly suited for low voltage application such as cellular phone and notebook computer power management and other Battery powered circuits, and low in-line power loss are needed in a very small outline sur

Features

¾ -100V/-10A, RDS(ON) =205mΩ @ VGS = -10V ¾ -100V/-10A, RDS(ON) =225mΩ @ VGS = -7V ¾ Super high density cell design for extremely ultra low RDS(ON) ¾ Exceptional on-resistance and maximum DC current capability ¾ TO-252 package design PIN.
