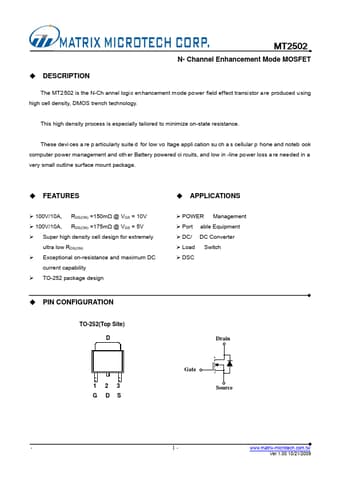

MT2502 N-Channel MOSFET

The MT2502 is the N-Ch annel logic enhancement m ode power field effect transistor are produced using high cell density, DMOS trench technology. This high density process is especially tailored to minimize on-state resistance. These devi ces a re p articularly suite d for low vo ltage appli cation s.

MT2502 Features

* RDS(ON) =150mΩ @ VGS = 10V RDS(ON) =175mΩ @ VGS = 5V APPLICATIONS Management ¾ 100V/10A, ¾ 100V/10A, ¾ ¾ ¾ ¾ POWER ¾ Port ¾ DC/ ¾ Load ¾ DSC able Equipment DC Converter Switch Super high density cell design for extremely ultra low RDS(ON) Exceptional on-resistance and maximum DC current capa
