ME1117-2.5, ME1117 Datasheet - Matsuki

ME1117-2.5 1A Low Dropout Voltage Regulator

The ME1117 series of adjustable and fixed voltage regulators are designed to provide 1A output current and to operate down to 1A input-to-output differential. The dropout voltage of the device is guaranteed maximum 1.3V at maximum output current, decreasing at lower load currents. On-Chip trimming a.

ME1117-2.5 Features

* 1. 1.8V, 2.5V, 3.3V, 5.0V, and Adjustable Output 2. Output Current of 1A 3. Operates Down to 1V Dropout 4. Line Regulation : 0.2% Max 5. Output Voltage Tolerance:2% max 6. SOT-223, TO-252 and TO-263 package available. APPLICATIONS 1. High E

ME1117-Matsuki.pdf

This datasheet PDF includes multiple part numbers: ME1117-2.5, ME1117. Please refer to the document for exact specifications by model.

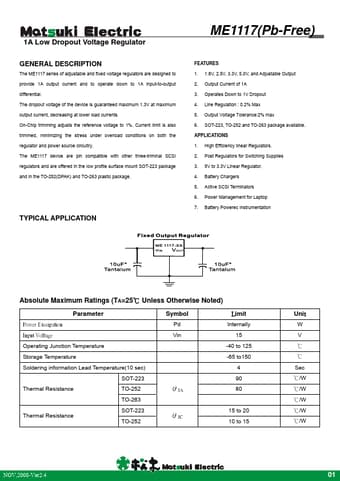

ME1117-2.5 Datasheet Preview Page 2 ME1117-2.5 Datasheet Preview Page 3

Datasheet Details

Part number:

ME1117-2.5, ME1117

Manufacturer:

Matsuki

File Size:

384.07 KB

Description:

1a low dropout voltage regulator.

Note:

This datasheet PDF includes multiple part numbers: ME1117-2.5, ME1117.
Please refer to the document for exact specifications by model.
