ME1117-5.0, ME1117 - 1A Low Dropout Voltage Regulator

Matsuki

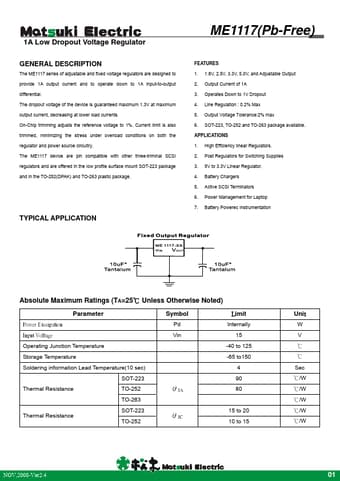

ME1117-5.0 Datasheet Preview — This datasheet PDF includes multiple part numbers: ME1117-5.0, ME1117. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	ME1117-5.0, ME1117
Manufacturer	Matsuki
File Size	384.07 KB
Description	1A Low Dropout Voltage Regulator
Datasheet	ME1117-Matsuki.pdf
Note	This datasheet PDF includes multiple part numbers: ME1117-5.0, ME1117. Please refer to the document for exact specifications by model.

ME1117-5.0 Product details

Description

The ME1117 series of adjustable and fixed voltage regulators are designed to provide 1A output current and to operate down to 1A input-to-output differential.

Features

1. 1.8V, 2.5V, 3.3V, 5.0V, and Adjustable Output 2. Output Current of 1A 3. Operates Down to 1V Dropout 4. Line Regulation : 0.2% Max 5. Output Voltage Tolerance:2% max 6. SOT-223, TO-252 and TO-263 package available.
