RK1-xxx Datasheet - Matsushita Electric Works

RK1-xxx 1.5GHz MICROWAVE RELAY

1.5 GHz MICROWAVE RELAY RK-RELAYS 20.2 .795 11.2 .441 9.7 .382 Excellent high frequency characteristics Isolation: Min. 60dB (at 1.5 GHz) Insertion loss: Max. 0.3dB (at 900 MHz) V.S.W.R.: Max. 1.5 (at 900MHz) High sensitivity in small size Size: 20.2 × 11.2 × 9.7 mm .795 × .441 × .382 inch Nominal power consumption: 200 mW (single side stable type) Sealed construction for automatic cleaning Latching types are also available mm inch SPECIFICA.

RK1-xxx_MatsushitaElectricWorks.pdf

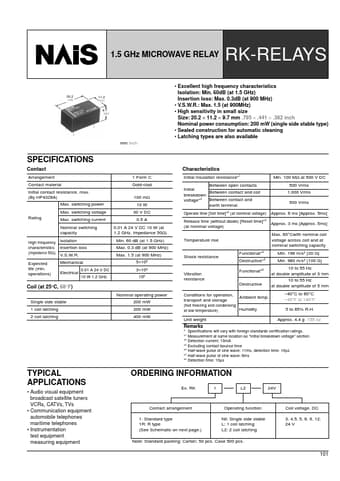

Preview of RK1-xxx PDF
RK1-xxx Datasheet Preview Page 2 RK1-xxx Datasheet Preview Page 3

Datasheet Details

Part number:

RK1-xxx

Manufacturer:

Matsushita Electric Works

File Size:

84.56 KB

Description:

1.5ghz microwave relay.
