RK1171114-F15, RK117 Datasheet - Alps

RK1171114-F15 11mm Size Metal Shaft Low-profile Potentiometer

RK1171114-F15 Features

* Low-profile only 7.55mm in height with a 1.5mm travel push-on switch. Rear mounting configuration permits direct mounting on the front side of a PC board. Without detent, with center detent, with 41 detents are available. Applications Sound volume, tone and balance controls for car audio systems an

RK117_Alps.pdf

This datasheet PDF includes multiple part numbers: RK1171114-F15, RK117. Please refer to the document for exact specifications by model.

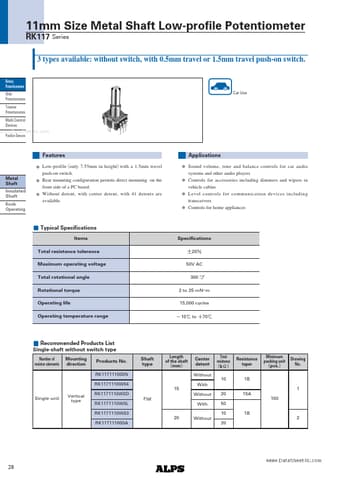

RK1171114-F15 Datasheet Preview Page 2 RK1171114-F15 Datasheet Preview Page 3

Datasheet Details

Part number:

RK1171114-F15, RK117

Manufacturer:

Alps

File Size:

161.21 KB

Description:

11mm size metal shaft low-profile potentiometer.

Note:

This datasheet PDF includes multiple part numbers: RK1171114-F15, RK117.
Please refer to the document for exact specifications by model.
