RK16812MG, RK168 Datasheet - ALPS

RK16812MG 16mm Size Motor-driven

16mm Size Motor-driven Type RK168 Remote controllable and available in a wide variety of products. Typical Specifications Items Specifications Total resistance tolerance Maximum operating voltage Total rotational angle Rotational torque Operating life Operating temperature range Motor voltage Potentiometer rotational speed （sec/300）° Maximum operating current ± 20％ 50V AC 300 ± 5° 10 to 40mNm 15,000cycles 10℃ to ＋ 70℃ 4 to 6V DC（Standerd：4.5VDC） 12 ± 3（4.5V DC） At rotation：1.

RK168-ALPS.pdf

This datasheet PDF includes multiple part numbers: RK16812MG, RK168. Please refer to the document for exact specifications by model.

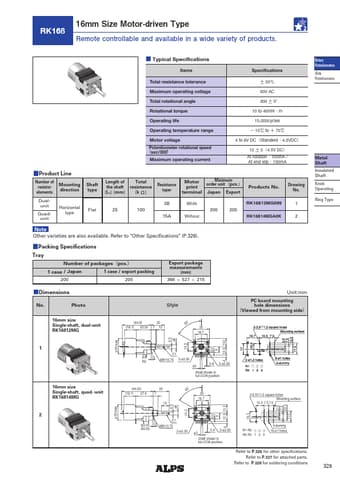

RK16812MG Datasheet Preview Page 2 RK16812MG Datasheet Preview Page 3

Datasheet Details

Part number:

RK16812MG, RK168

Manufacturer:

ALPS

File Size:

390.53 KB

Description:

16mm size motor-driven.

Note:

This datasheet PDF includes multiple part numbers: RK16812MG, RK168.
Please refer to the document for exact specifications by model.
