RK16816MG Datasheet - ALPS

RK16816MG 16mm Size Motor-driven

16mm Size Motor-driven Type RK168 Remote controllable and available in a wide variety of products. Typical Specifications Items Specifications Total resistance tolerance Maximum operating voltage Total rotational angle Rotational torque Operating life Operating temperature range Motor voltage Potentiometer rotational speed （sec/300）° Maximum operating current ± 20％ 50V AC 300 ± 5° 10 to 40mNm 15,000cycles 10℃ to ＋ 70℃ 4 to 6V DC（Standerd：4.5VDC） 12 ± 3（4.5V DC） At rotation：1.

RK16816MG Datasheet (390.53 KB)

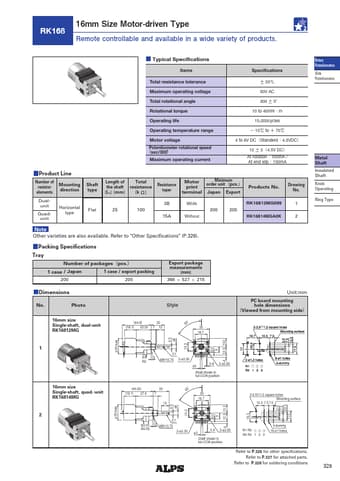

Preview of RK16816MG PDF
RK16816MG Datasheet Preview Page 2 RK16816MG Datasheet Preview Page 3

Datasheet Details

Part number:

RK16816MG

Manufacturer:

ALPS

File Size:

390.53 KB

Description:

16mm size motor-driven.
