MT7910

High Brightness LED Driver

MT7910 Features

* Proprietary constant-current control. Great LED current accuracy.

* Wide input range from 14VDC to 450VDC or 85VAC to 265VAC

* Application from a few mA to more than 1A output

* Up to 92% efficiency

* Up to hundreds of LEDs

* Linear and PWM dimming c

MT7910 General Description

The MT7910 is a hysteresis current mode control LED driver IC. The MT7910 operates in constant off-time mode. It allows efficient operation of High Brightness (HB) LEDs from voltage sources ranging from 14VDC up to 450VDC or 85VAC ~ 265VAC. The MT7910 includes a PWM dimming input that can accept an .

MT7910 Datasheet (515.51 KB)

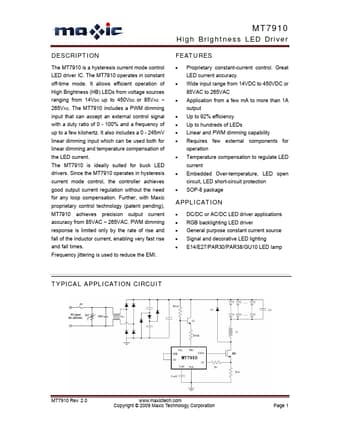

Preview of MT7910 PDF

Datasheet Details

Part number:

MT7910

Manufacturer:

Maxic Technology

File Size:

515.51 KB

Description:

High brightness led driver.
