DG418L, DG417L Logic-compatible Analog Switches

Maxim Integrated Products

Description

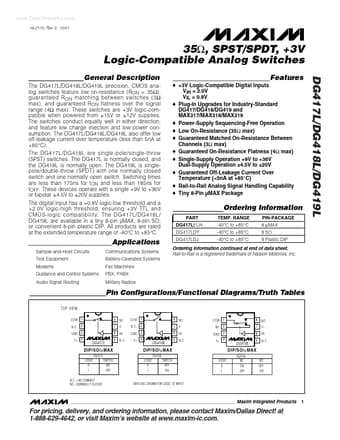

www.DataSheet4U.com 19-2170; Rev 0; 10/01 35Ω, SPST/SPDT, +3V Logic-Compatible Analog Switches General .
The DG417L/DG418L/DG419L precision, CMOS analog switches feature low on-resistance (RON = 35Ω), guaranteed R ON matching between switches (3 Ω max), a.

📥 Download Datasheet

DG418L Datasheet Preview — This datasheet PDF includes multiple part numbers: DG418L, DG417L. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: DG418L, DG417L
Manufacturer: Maxim Integrated ↗ Products
File Size: 339.01 KB
Datasheet: DG417L_MaximIntegratedProducts.pdf
Description: Logic-compatible Analog Switches
Note: This datasheet PDF includes multiple part numbers: DG418L, DG417L.
Please refer to the document for exact specifications by model.

Features

* o +3V Logic-Compatible Digital Inputs VIH = 2.0V VIL = 0.8V o Plug-In Upgrades for Industry-Standard DG417/DG418/DG419 and MAX317/MAX318/MAX319 o Power-Supply Sequencing-Free Operation o Low On-Resistance (35Ω max) o Guaranteed Matched On-Resistance Between Channels (3Ω max) o Guaranteed On-Resistan

Applications

* Sample-and-Hold Circuits Test Equipment Modems Guidance and Control Systems Audio Signal Routing Communications Systems Battery-Operated Systems Fax Machines PBX, PABX Military Radios Ordering Information continued at end of data sheet. Rail-to-Rail is a registered trademark of Nippon Motorola, Inc
