DG411HS Precision Monolithic Quad SPST CMOS Analog Switches

Vishay

Description

DG411HS, DG412HS, DG413HS Vishay Siliconix Precision Monolithic Quad SPST CMOS Analog Switches .
The DG411HS series of monolithic quad analog switches was designed to provide high speed, low error switching of precision analog signals.

📥 Download Datasheet

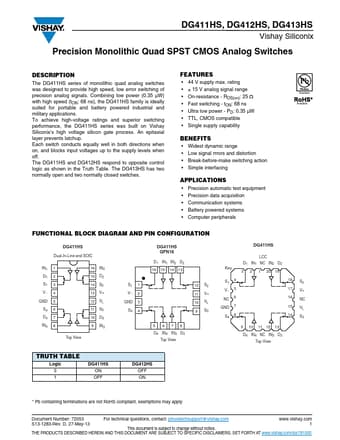

DG411HS Datasheet Preview — Preview of DG411HS PDF

Datasheet Specifications

Part number: DG411HS
Manufacturer: Vishay ↗
File Size: 210.75 KB
Datasheet: DG411HS-Vishay.pdf
Description: Precision Monolithic Quad SPST CMOS Analog Switches

Features

* 44 V supply max. rating
* ± 15 V analog signal range
* On-resistance - RDS(on): 25 
* Fast switching - tON: 68 ns
* Ultra low power - PD: 0.35 µW
* TTL, CMOS compatible
* Single supply capability BENEFITS
* Widest dynamic range

Applications

* To achieve high-voltage ratings and superior switching performance, the DG411HS series was built on Vishay Siliconix’s high voltage silicon gate process. An epitaxial layer prevents latchup. Each switch conducts equally well in both directions when on, and blocks input voltages up to the supply lev
