DG412F - SPST Analog Switches

Product Overview

Maxim Integrated

Part number	DG412F
Manufacturer	Maxim Integrated
File Size	429.70 KB
Description	SPST Analog Switches
Datasheet	DG412F Datasheet
Note	This datasheet PDF includes multiple part numbers: DG412F, DG411F. Please refer to the document for exact specifications by model.

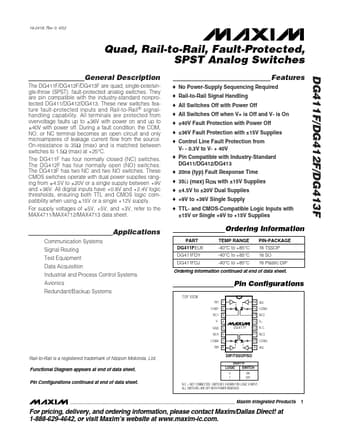

Additional preview pages of the DG412F datasheet.

The DG411F/DG412F/DG413F are quad, single-pole/single-throw (SPST), fault-protected analog switches.

o No Power-Supply Sequencing Required o Rail-to-Rail Signal Handling o All Switches Off with Power Off o All Switches Off when V+ is Off and V- is On o ±40V Fault Protection with Power Off o ±36V Fault Protection with ±15V Supplies o Control Line Fault Protection from V- - 0.3V to V- + 40V o Pin Compatible with Industry-Standard DG411/DG412/DG413 o 20ns (typ) Fault Response Time o 35Ω (max) RON with ±15V Supplies o ±4.5V to ±20V Dual Supplies o +9V to +36V Single Supply o TTL- and CMOS-Compatibl.
