DG412LE

Quad SPST Switches

DG412LE Features

* 3 V to 16 V single supply or ± 3 V to ± 8 V dual supply

* On-resistance RDS(on): 16  Available

* Low parasitic capacitance: Available CD(ON): 15 pF CS(OFF): 5 pF

* Less than 8 pC charge injection over the full signal swing range

* Fast switching

DG412LE General Description

The DG411LE, DG412LE, and DG413LE are monolithic quad single-pole-single-throw analog switches. The DG411LE and DG412LE differ only in that they respond to opposite logic levels. The DG413LE has two normally open and two normally closed switches. It can be given various configurations, including fou.

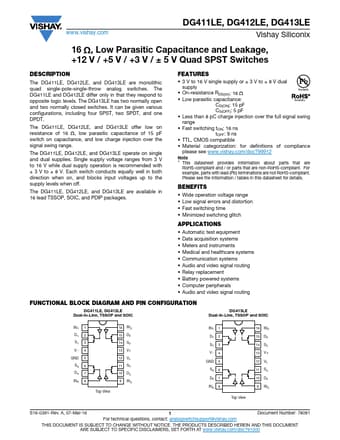

DG412LE Datasheet (305.29 KB)

Preview of DG412LE PDF

Datasheet Details

Part number:

DG412LE

Manufacturer:

Vishay ↗

File Size:

305.29 KB

Description:

Quad spst switches.
www.vishay.com DG411LE, DG412LE, DG413LE Vishay Siliconix 16 , Low Parasitic Capacitance and Leakage, +12 V / +5 V / +3 V / ± 5 V Quad SPST Switche.
