DS1842A Datasheet, Stage, Maxim Integrated Products

DS1842A Features

  • Stage
  • 76V Maximum Boost Voltage
  • Switch FET
  • Current Monitor with a Wide 1µA to 2mA Range, Fast 50ns Time Constant, and 10:1 and 5:1 Ratio
  • 2mA Current Cl

PDF File Details

Part number:

DS1842A

Manufacturer:

Maxim Integrated ↗ Products

File Size:

169.83kb

Download:

📄 Datasheet

Description:

Bias output stage. Features

  • 76V Maximum Boost Voltage
  • Switch FET
  • Current Monitor with a Wide 1µA to 2mA Range, Fast 50ns T

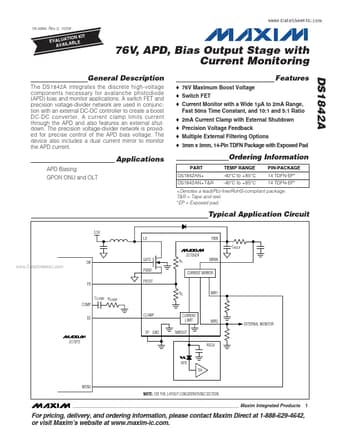

  • Datasheet Preview: DS1842A 📥 Download PDF (169.83kb)
    Page 2 of DS1842A Page 3 of DS1842A

    DS1842A Application

    • Applications A switch FET and precision voltage-divider network are used in conjunction with an external DC-DC controller to create a boost DC-DC c
