DS1856 Temperature-Controlled Resistors

📥 Download Datasheet Datasheet Preview Page 1

Description

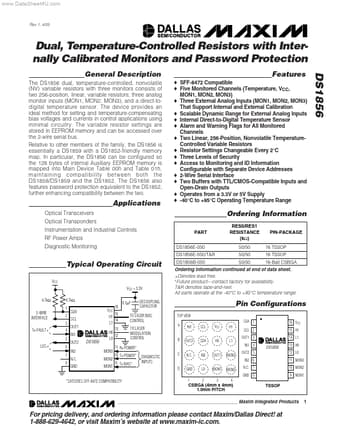

www.DataSheet4U.com Rev 1; 4/05 Dual, Temperature-Controlled Resistors with Internally Calibrated Monitors and Password Protection General Descripti.
The DS1856 dual, temperature-controlled, nonvolatile (NV) variable resistors with three monitors consists of two 256-position, linear, variable resist.

📥 Download Datasheet

Preview of DS1856 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Features

* password protection equivalent to the DS1852, further enhancing compatibility between the two. Features
* SFF-8472 Compatible
* Five Monitored Channels (Temperature, VCC, MON1, MON2, MON3)
* Three External Analog Inputs (MON1, MON2, MON3) That Support Internal and External C

Applications

* using minimal circuitry. The variable resistor settings are stored in EEPROM memory and can be accessed over the 2-wire serial bus. Relative to other members of the family, the DS1856 is essentially a DS1859 with a DS1852-friendly memory map. In particular, the DS1856 can be configured so the 128 by
