DS4510, DS4 CPU Supervisor with Nonvolatile Memory and Programmable I/O

DS4510 Description

Rev 2; 8/04 CPU Supervisor with Nonvolatile Memory and Programmable I/O General .
The DS4510 is a CPU supervisor with integrated 64byte EEPROM memory and four programmable, nonvolatile (NV) I/O pins.

DS4510 Features

* Accurate 5%, 10%, or 15% 5V Power-Supply Monitoring
* Programmable Reset Timer Maintains Reset After VCC Returns to an In-Tolerance Condition
* Four Programmable, NV, Digital I/O Pins with Selectable Internal Pullup Resistor
* 64 Bytes of User EEPROM
* Reduc

DS4510 Applications

* RAM-Based FPGA Bank Switching for Multiple Profiles Industrial Controls Cellular Telephones PC Peripherals PDAs PART DS4510U-5 DS4510U-10 DS4510U-15 DS4510U-5/T&R DS4510U-10/T&R DS4510U-15/T&R Ordering Information VCC TRIP POINT 5% 10% 15% 5% 10% 15% PINPACKAGE -40°C to +85°C 10 µSOP TEMP RANGE -40

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: DS4510, DS4. Please refer to the document for exact specifications by model.

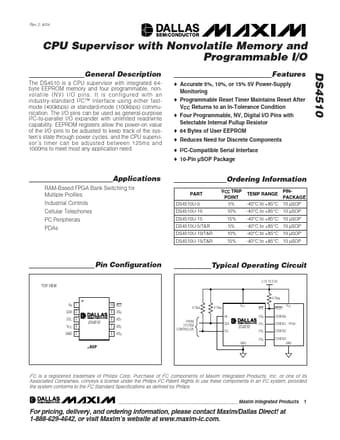

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DS4510, DS4
Manufacturer
Maxim Integrated ↗ Products
File Size
581.15 KB
Datasheet
DS4-510.pdf
Description
CPU Supervisor with Nonvolatile Memory and Programmable I/O
Note
This datasheet PDF includes multiple part numbers: DS4510, DS4.
Please refer to the document for exact specifications by model.
