DS4155 (DS4xxx) DS4-XO Series Crystal Oscillators

The DS4125, DS4155, DS4156, DS4160, DS4311, DS4312, DS4622, and DS4776 ceramic surface-mount crystal oscillators are part of Maxim’s DS4-XO series crystal oscillators family. These devices offer output frequencies at 125MHz, 155.52MHz, 156.25MHz, 160MHz, 311.04MHz, 312.5MHz, 622.08MHz, and 77.76MHz..

DS4155 Features

* < 0.6psRMS from 12kHz to 20MHz Jitter DS4125/DS4155/DS4156/DS4160/DS4311/DS4312/DS4622/DS4776 Ordering Information PART DS4125D+ DS4125P+ DS4155D+ DS4155P+ DS4156D+ DS4156P+ DS4160D+ DS4160P+ DS4311D+ DS4311P+ DS4312D+ DS4312P+ DS4622D+ DS4622P+ DS4776D+ DS4776P+ TEMP RANGE -40°C to +85°

DS4125_MaximIntegratedProducts.pdf

This datasheet PDF includes multiple part numbers: DS4155, DS4125. Please refer to the document for exact specifications by model.

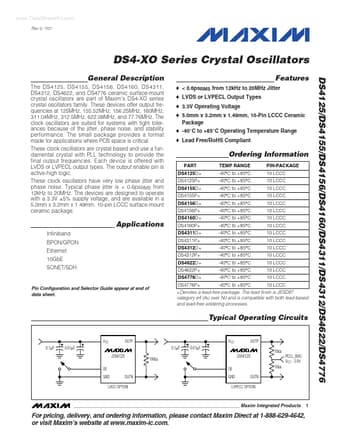

DS4155 Datasheet Preview Page 2 DS4155 Datasheet Preview Page 3
