DS4212 - (DS4106 - DS4425) Clock Oscillators

This page provides the datasheet information for the DS4212, a member of the DS4106 (DS4106 - DS4425) Clock Oscillators family.

Datasheet Summary

Description

The DS4106, DS4212, and DS4425 ceramic surfacemount crystal oscillators are part of Maxim’s DS4-XO series crystal oscillators family.

These devices offer output frequencies at 106.25MHz, 212.5MHz, and 425MHz.

Features

  • DS4106/DS4212/DS4425 Ordering Information PART DS4106 AN+ DS4106BN+ DS4212 AN+ DS4212BN+ DS4425 AN+ DS4425BN+ TEMP RANGE -40°C to +85°C -40°C to +85°C -40°C to +85°C -40°C to +85°C -40°C to +85°C -40°C to +85°C PIN-.

📥 Download Datasheet

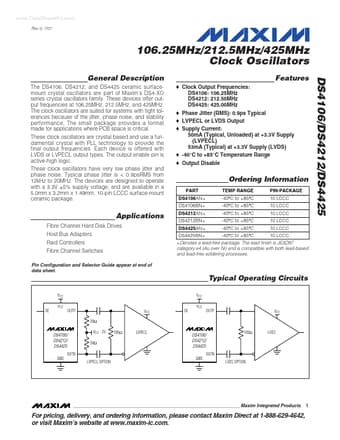

Datasheet preview – DS4212

Datasheet Details

Part number DS4212
Manufacturer Maxim Integrated Products
File Size 149.76 KB
Description (DS4106 - DS4425) Clock Oscillators
Datasheet download datasheet DS4212 Datasheet
Additional preview pages of the DS4212 datasheet.
