DS4201 - USB Audio DAC

Datasheet Summary

Description

The DS4201 Universal Serial Bus (USB) audio device is a complete interface solution for USB based PC digital audio playback.

bit sigma delta DAC and fixed function DSP processing, as shown in Figure 1, the DS

Features

  • Fully USB Core Class v1.0 Compliant.
  • Fully USB Audio Device Class v1.0 Compliant.
  • Complete Stereo DAC System.
  • 16.
  • bit Σ∆ DAC.
  • Analog Post Filter.
  • 44.1 KHz, 48 KHz Sampling Rates.
  • >80 dB S/N DAC Performance.
  • Audio System Power Management.
  • 8 and 16.
  • Bit PCM Digital Data Formats.
  • Integrated USB Compliant Transceiver.
  • High Rate 12 Mbps USB Interface.
  • Analog Output Mixing for Auxiliary Inputs.
  • Multiple Power Configuration.

📥 Download Datasheet

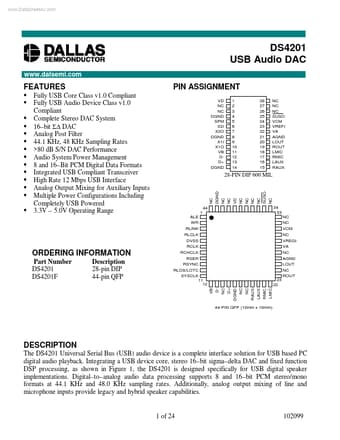

Datasheet preview – DS4201
