DS4802

Low Voltage/ Micro Power/ High Performance/ Rail-To-Rail Dual Op-Amp

DS4802 Features

* Very low operating power: 12 µA typical per amplifier High output sink/source capability Supply Voltage Range 1.8 to 5.5V Rail-to-Rail Output Swing Input offset voltage: 0.95 mV max. PACKAGES/PINOUTS AOUT 1 8 VDD AIN- 2 A B + - 7 BOUT AIN+ 3 - + 6 BIN- GND 4 5 BIN+ ORDERING INFORMATIO

DS4802 General Description

8-pin DIP 8-pin SOIC 8-pin µ-SOP 8-bump Flip-Chip AOUT 2 AINAIN+ 5 1 300-mil DIP 150-mil SOIC 118-mil µ-SOP VDD 6 4 BOUT A - + B + - For mechanical dimensions see website. 7 8 BINBIN+ 3 GND 8-bump Flip-Chip DESCRIPTION The DS4802 BiCMOS dual operational amplifier combines low input offset vol.

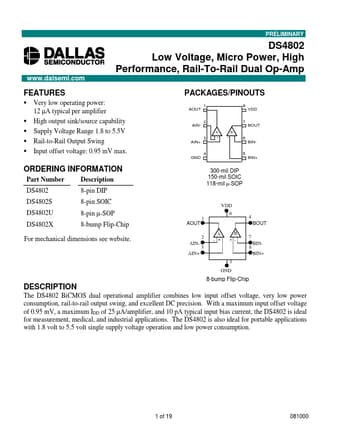

DS4802 Datasheet (142.88 KB)

Preview of DS4802 PDF

Datasheet Details

Part number:

DS4802

Manufacturer:

Dallas Semiconducotr

File Size:

142.88 KB

Description:

Low voltage/ micro power/ high performance/ rail-to-rail dual op-amp.
