ICL7642, ICL761x, Single/Dual/Triple/Quad Operational Amplifiers

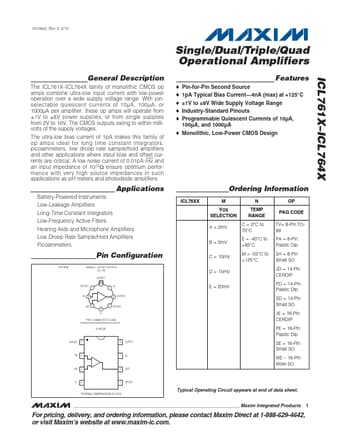

19-0942; Rev 3; 5/10 ICL761X *ICL764X Single/Dual/Triple/Quad Operational Amplifiers General .
The ICL761X. ICL764X family of monolithic CMOS op amps combine ultra-low input current with low-power operation over a wide supply voltage rang.

ICL761x_MaximIntegratedProducts.pdf

ICL7642 Datasheet Preview — This datasheet PDF includes multiple part numbers: ICL7642, ICL761x. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ICL7642, ICL761x

Manufacturer:

Maxim Integrated ↗ Products

File Size:

528.30 KB

Description:

Single/Dual/Triple/Quad Operational Amplifiers

Note:

This datasheet PDF includes multiple part numbers: ICL7642, ICL761x.
Please refer to the document for exact specifications by model.

Features

* o Pin-for-Pin Second Source o 1pA Typical Bias Current
* 4nA (max) at +125°C o ±1V to ±8V Wide Supply Voltage Range o Industry-Standard Pinouts o Programmable Quiescent Currents of 10µA, 100µA, and 1000µA o Monolithic, Low-Power CMOS Design ICL76XX Ordering Information MN VOS SELECTION TE

Applications

* where input bias and offset currents are critical. A low noise current of 0.01pA√Hz and an input impedance of 1012Ω ensure optimum performance with very high source impedances in such applications as pH meters and photodiode amplifiers. Applications Battery-Powered Instruments Low-Leakage Amplifiers
