MAX11504 - Standard-Definition Video Filter

Description

The MAX11504/MAX11505 integrated filters offer four channels of 5th order filters for standard-definition video and include +6dB output buffers on each channel.

Features

  • br>.
  • Four-Channel 5th Order Filter for StandardDefinition Video +6dB Output Buffers Transparent Input Clamp AC- or DC-Coupled Inputs AC- or DC-Coupled Outputs Output Buffers Can Drive Two Standard 150Ω Video Loads 12kV HBM ESD Protection on Outputs Flat Passband Response (MAX11504) 0.8dB Peaking Passband Response on Channel 1 (MAX11505) Single +5V Power Supply Small 10-Pin µMAX Package MAX11504/MAX11505 Ordering Information PART MAX11504CUB+ MAX11505CUB+.

📥 Download Datasheet

Datasheet preview – MAX11504

📁 Similar Datasheet

  • MAX1150 - 8-Bit / 500Msps Flash ADC (Maxim)
  • MAX11500 - High-Definition Video Filter (Maxim Integrated)
  • MAX115 - 2x4-Channel / Simultaneous-Sampling 12-Bit ADCs (Maxim)
  • MAX1151 - 750Msps Flash ADC (Maxim)
  • MAX1153 - 10-Bit System Monitors (Maxim)
  • MAX1154 - 10-Bit System Monitors (Maxim Integrated)
  • MAX1156 - Single-Supply ADCs (Maxim Integrated)
  • MAX1158 - Single-Supply ADCs (Maxim Integrated)
  • MAX110 - Low-Cost / 2-Channel / 14-Bit Serial ADCs (Maxim)
  • MAX1101 - Single-Chip / 8-Bit CCD Digitizer (Maxim)
Other Datasheets by Maxim Integrated Products
  • MAX11505 - Standard-Definition Video Filter
  • MAX11508 - HD/PS/SD/BP Video Filters
  • MAX11509 - HD/PS/SD/BP Video Filters
  • MAX11014 - Automatic RF MESFET Amplifier Drain-Current Controllers
  • MAX11015 - Automatic RF MESFET Amplifier Drain-Current Controllers
  • MAX11040 - Sigma-Delta ADC
  • MAX11040K - (MAX11040K / MAX11060) Sigma-Delta ADCs
  • MAX11041 - (MAX11041 / MAX11042) Wired Remote Controllers

Full PDF Text Transcription

Click to expand full text

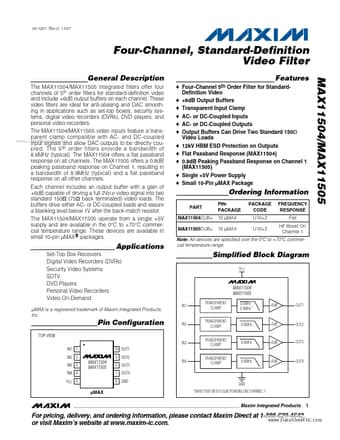

19-1057; Rev 0; 11/07 Four-Channel, Standard-Definition Video Filter General Description The MAX11504/MAX11505 integrated filters offer four channels of 5th order filters for standard-definition video and include +6dB output buffers on each channel. These video filters are ideal for anti-aliasing and DAC smoothing in applications such as set-top boxes, security systems, digital video recorders (DVRs), DVD players, and personal video recorders. The MAX11504/MAX11505 video inputs feature a transparent clamp compatible with AC- and DC-coupled www.DataSheet4U.com input signals and allow DAC outputs to be directly coupled. The 5 th order filters provide a bandwidth of 8.6MHz (typical). The MAX11504 offers a flat passband response on all channels. The MAX11505 offers a 0.
