Description

19-4554; Rev 0; 4/09 www.DataSheet4U.com 2.7V to 3.6V and 4.5V to 5.5V, Low-Power, 4-/8-/12-Channel 2-Wire Serial 8-Bit ADCs General .
The MAX11600. MAX11605 low-power, 8-bit, multichannel, analog-to-digital converters (ADCs) feature internal track/hold (T/H), voltage reference.

📥 Download Datasheet

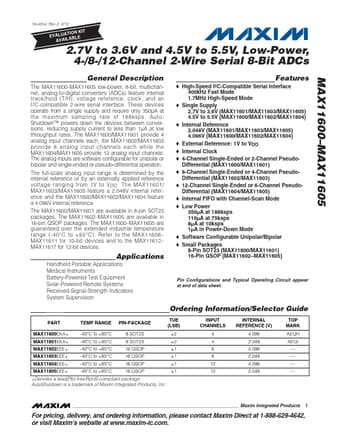

MAX11604 Datasheet Preview — This datasheet PDF includes multiple part numbers: MAX11604, MAX11600. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: MAX11604, MAX11600
Manufacturer: Maxim Integrated ↗ Products
File Size: 302.08 KB
Datasheet: MAX11600_MaximIntegratedProducts.pdf
Description: 2-Wire Serial 8-Bit ADCs
Note: This datasheet PDF includes multiple part numbers: MAX11604, MAX11600.
Please refer to the document for exact specifications by model.

Features

* o High-Speed I2C-Compatible Serial Interface 400kHz Fast Mode 1.7MHz High-Speed Mode o Single Supply 2.7V to 3.6V (MAX11601/MAX11603/MAX11605) 4.5V to 5.5V (MAX11600/MAX11602/MAX11604) o Internal Reference 2.048V (MAX11601/MAX11603/MAX11605) 4.096V (MAX11600/MAX11602/MAX11604) o External Reference:

Applications

* Handheld Portable Applications Medical Instruments Battery-Powered Test Equipment Solar-Powered Remote Systems Received-Signal-Strength Indicators System Supervision Pin Configurations and Typical Operating Circuit appear at end of data sheet. Ordering Information/Selector Guide PART MAX11600EKA+
