MAX1160

10-Bit / 20Msps / TTL-Output ADC

MAX1160 Features

* o Monolithic 20Msps Converter o On-Chip Track/Hold o Bipolar, ±2V Analog Input o 60dB SNR at 1MHz Input o 5pF Input Capacitance o TTL Outputs _______________General Description The MAX1160 10-bit, monolithic analog-to-digital converter (ADC) is capable of 20Msps minimum word rates. An on-board trac

MAX1160 General Description

The MAX1160 10-bit, monolithic analog-to-digital converter (ADC) is capable of 20Msps minimum word rates. An on-board track/hold ensures excellent dynamic performance without the need for external components. A 5pF input capacitance minimizes drive requirement problems. Inputs and outputs are TTL co.

MAX1160 Datasheet (76.16 KB)

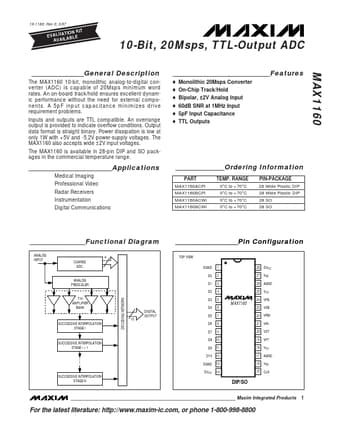

Preview of MAX1160 PDF

Datasheet Details

Part number:

MAX1160

Manufacturer:

Maxim

File Size:

76.16 KB

Description:

10-bit / 20msps / ttl-output adc.
