MAX12553 - 14-Bit 65Msps 3.3V ADC

Features

  • Direct IF Sampling Up to 400MHz.
  • Excellent Dynamic Performance 74.0dB/71dB SNR at fIN = 3MHz/175MHz 90.6dBc/80.7dBc SFDR at fIN = 3MHz/175MHz.
  • Low Noise Floor: -76dBFS.
  • 3.3V Low-Power Operation 337mW (Single-Ended Clock Mode) 363mW (Differential Clock Mode) 150µW (Power-Down Mode).
  • Fully Differential or Single-Ended Analog Input.
  • Adjustable Full-Scale Analog Input Range: ±0.35V to ±1.10V.
  • Common-Mode Reference.
  • CMOS-Compati.

📥 Download Datasheet

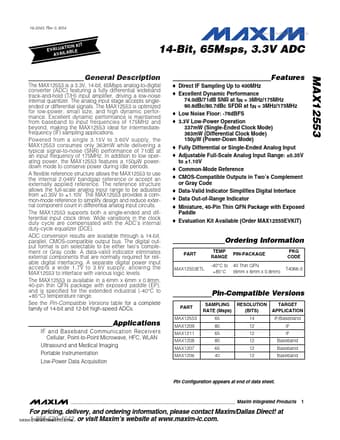

Datasheet preview – MAX12553
