MAX1330, 12-/16-Bit DASs

19-4252; Rev 1; 10/08 www.DataSheet4U.com 12-/16-Bit DASs with ADC, DACs, DPIOs, APIOs, Reference, Voltage Monitors, and Temp Sensor General Descrip.
The MAX1329/MAX1330 are smart data acquisition systems (DASs) based on a successive approximation register (SAR) analog-to-digital converter (ADC).

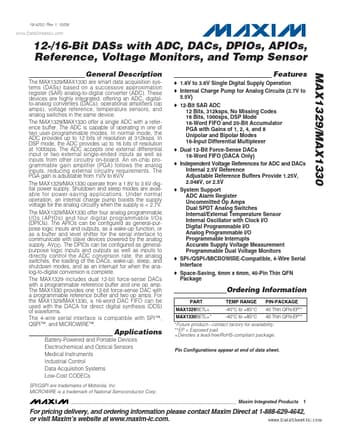

datasheet Preview Page 1 from Datasheet4u.com

MAX1330_MaximIntegratedProducts.pdf

MAX1330 Datasheet Preview — Preview of MAX1330 PDF

Datasheet Details

Part number:

MAX1330

Manufacturer:

Maxim Integrated ↗ Products

File Size:

2.69 MB

Description:

12-/16-Bit DASs

Features

* 1.8V to 3.6V Single Digital Supply Operation
* Internal Charge Pump for Analog Circuits (2.7V to 5.5V)
* 12-Bit SAR ADC 12 Bits, 312ksps, No Missing Codes 16 Bits, 1000sps, DSP Mode 16-Word FIFO and 20-Bit Accumulator PGA with Gains of 1, 2, 4, and 8 Unipolar and Bipolar Mo

Applications

* Under normal operation, an internal charge pump boosts the supply voltage for the analog circuitry when the supply is < 2.7V. The MAX1329/MAX1330 offer four analog programmable I/Os (APIOs) and four digital programmable I/Os (DPIOs). The APIOs can be configured as general-purpose logic inputs and o
