MAX13326 - Dual Automotive Audio Line Drivers

This page provides the datasheet information for the MAX13326, a member of the MAX13325 Dual Automotive Audio Line Drivers family.

Datasheet Summary

Description

The MAX13325/MAX13326 dual audio line drivers provide a reliable differential interface between automotive audio components.

The devices feature differential inputs and outputs, integrated output diagnostics, and are controlled using an I2C interface or operate in stand-alone mode.

Features

  • S Comprehensive Programmability and Diagnostics Using I2C Interface S Autoretry Function in Stand-Alone Mode S Drive Capacitive Loads ≤ 3nF Differentially, ≤ 4nF to Ground S 112dB Signal-to-Noise Ratio S Low 0.002% THD at 4VRMS into 2.7kI Loads S High PSRR (70dB at 1kHz) S High CMRR (80dB at 1kHz) S Low Output Noise (3µVRMS), MAX13326 S Excellent Channel-to-Channel Matching S Load-Dump Transient Protection S Protected Output Against Various Short-Circuit Conditions S ESD Protection f.

📥 Download Datasheet

Datasheet preview – MAX13326

Datasheet Details

Part number MAX13326
Manufacturer Maxim Integrated Products
File Size 694.71 KB
Description Dual Automotive Audio Line Drivers
Datasheet download datasheet MAX13326 Datasheet
Additional preview pages of the MAX13326 datasheet.

📁 Similar Datasheet

  • MAX133 - 3 Digit DMM Circuit (Maxim)
  • MAX13335E - Dual Automotive Differential Audio Receivers (Maxim Integrated)
  • MAX13336E - Dual Automotive Differential Audio Receivers (Maxim Integrated)
  • MAX130 - 3 Digit A/D Converters with Bandgap Refrence (Maxim)
  • MAX13000E - Ultra-Low-Voltage Level Translators (Maxim Integrated)
  • MAX13001E - Ultra-Low-Voltage Level Translators (Maxim Integrated)
  • MAX13002E - Ultra-Low-Voltage Level Translators (Maxim Integrated)
  • MAX13003E - Ultra-Low-Voltage Level Translators (Maxim Integrated)
  • MAX13004E - Ultra-Low-Voltage Level Translators (Maxim Integrated)
  • MAX13005E - Ultra-Low-Voltage Level Translators (Maxim Integrated)
Other Datasheets by Maxim Integrated Products
  • MAX1332 - (MAX1332 / MAX1333) True-Differential 12-Bit ADCs
  • MAX13325 - Dual Automotive Audio Line Drivers
  • MAX1330 - 12-/16-Bit DASs
  • MAX1333 - (MAX1332 / MAX1333) True-Differential 12-Bit ADCs
  • MAX13330 - Automotive DirectDrive Headphone Amplifiers
  • MAX13331 - (MAX13330 / MAX13331) Automotive DirectDrive Headphone Amplifiers
  • MAX13342E - (MAX13342E / MAX13345E) 3-Wire Interface Full Speed USB Transceivers
  • MAX13345E - (MAX13342E / MAX13345E) 3-Wire Interface Full Speed USB Transceivers

Full PDF Text Transcription

Click to expand full text

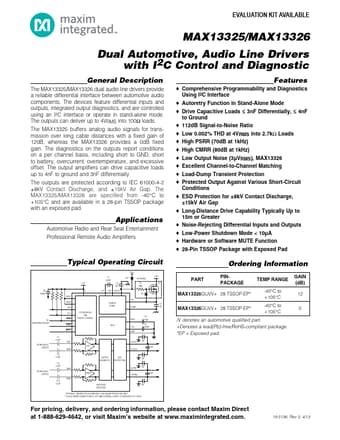

19-5136; Rev 0; 1/10 www.DataSheet4U.com TION KIT EVALUA BLE IL AVA A Dual Automotive, Audio Line Drivers with I2C Control and Diagnostic Features S Comprehensive Programmability and Diagnostics Using I2C Interface S Autoretry Function in Stand-Alone Mode S Drive Capacitive Loads ≤ 3nF Differentially, ≤ 4nF to Ground S 112dB Signal-to-Noise Ratio S Low 0.002% THD at 4VRMS into 2.
