MAX1510 - Low-Voltage DDR Linear Regulators

Datasheet Summary

Features

  • o Internal Power MOSFETs with Current Limit (3A typ) o Fast Load-Transient Response o External Reference Input with Reference Output Buffer o 1.1V to 3.6V Power Input o ±15mV (max) Load-Regulation Error o Thermal Fault Protection o Shutdown Input o Power-Good Window Comparator with 2ms (typ) Delay o Small, Low-Profile 10-Pin 3mm x 3mm TDFN Package o Ceramic or Polymer Output Capacitors MAX1510 The MAX1510 DDR linear regulator sources and sinks up to 3A peak (typ) using internal n-channel MOSFE.

📥 Download Datasheet

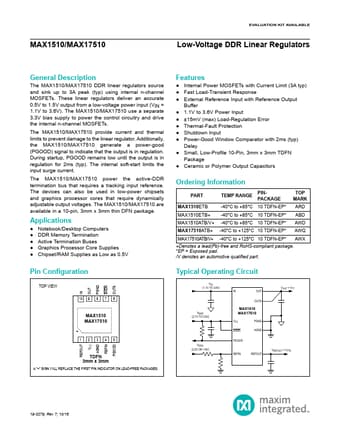

Datasheet preview – MAX1510

Datasheet Details

Part number MAX1510
Manufacturer Maxim Integrated Products
File Size 721.46 KB
Description Low-Voltage DDR Linear Regulators
Datasheet download datasheet MAX1510 Datasheet
