MAX15102 - Low-Dropout Linear Regulator

Datasheet Summary

Description

The MAX15102 is a small, low-dropout linear regulator optimized for networking, datacom, and server applications.

The regulator delivers up to 2A from a 1.7V to 5.5V input supply with output accuracy of Q1.6%.

Features

  • an external bypass input to reduce noise. This bypass input also serves as a softstart control. An enable input and power-good output are included for power sequence control. The MAX15102 is available in a 1.6mm x 2.7mm WLP package and is fully specified from the -40NC to +85NC operating temperature range. S 1.7V to 5.5V Operating Range S 150mV Dropout Guaranteed at 2A S ±1.6% Output Accuracy Over Line, Load, and Temperature S Adjustable Output from 0.6V to 5.2V S Foldback Current Protectio.

📥 Download Datasheet

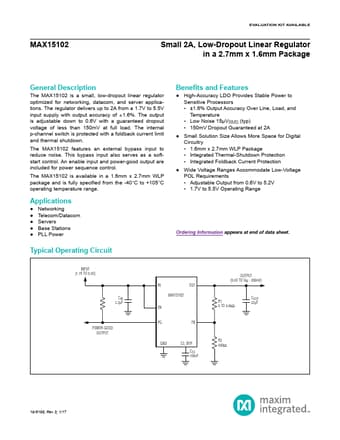

Datasheet preview – MAX15102

Datasheet Details

Part number MAX15102
Manufacturer Maxim Integrated Products
File Size 537.89 KB
Description Low-Dropout Linear Regulator
Datasheet download datasheet MAX15102 Datasheet
Additional preview pages of the MAX15102 datasheet.

📁 Similar Datasheet

  • MAX15106A - Synchronous Step-Down Switching Regulator (Analog Devices)
  • MAX15106B - Synchronous Step-Down Switching Regulator (Analog Devices)
  • MAX15106C - Synchronous Step-Down Switching Regulator (Analog Devices)
  • MAX151 - 300kHz 10-Bit A/D Converter with Refrence and T/H (Maxim)
  • MAX1516A - TFT-LCD DC-DC Converters (Maxim Integrated)
  • MAX1517A - TFT-LCD DC-DC Converters (Maxim Integrated)
  • MAX1518A - TFT-LCD DC-DC Converters (Maxim Integrated)
  • MAX150 - CMOS High Speed 8Bit A/D Converter with Refrence and Track/Hold Function (Maxim)
  • MAX15002 - Dual-Output Buck Controller (Maxim Integrated)
  • MAX15004A - 4.5V to 40V Input Automotive Flyback/Boost/SEPIC Power-Supply Controllers (Maxim Integrated)
Other Datasheets by Maxim Integrated Products
  • MAX1510 - Low-Voltage DDR Linear Regulators
  • MAX15101 - Low-Dropout Linear Regulator
  • MAX15103 - Low-Dropout Linear Regulator
  • MAX15104 - Low-Dropout Linear Regulator
  • MAX15108 - Current-Mode Synchronous Step-Down Switching Regulator
  • MAX15108A - Synchronous Step-Down Switching Regulator
  • MAX15109 - Current-Mode Synchronous Step-Down Switching Regulator
  • MAX15112 - Current-Mode Synchronous Step-Down Regulator

Full PDF Text Transcription

Click to expand full text
19-6155; Rev 0; 12/11 EVALUATION KIT AVAILABLE MAX15102 Small 2A, Low-Dropout Linear Regulator in a 2.7mm x 1.6mm Package General Description The MAX15102 is a small, low-dropout linear regulator optimized for networking, datacom, and server applications. The regulator delivers up to 2A from a 1.7V to 5.5V input supply with output accuracy of Q1.6%. The output is adjustable down to 0.6V with a guaranteed dropout voltage of less than 150mV at full load. The internal p-channel switch is protected with a foldback current limit and thermal shutdown. The MAX15102 features an external bypass input to reduce noise. This bypass input also serves as a softstart control. An enable input and power-good output are included for power sequence control. The MAX15102 is available in a 1.6mm x 2.
