MAX16014 - (MAX16010 - MAX16014) Overvoltage Protection/Detection Circuits

Product Overview

Maxim Integrated Products

Datasheet Details

Part number	MAX16014
Manufacturer	Maxim Integrated Products
File Size	391.60 KB
Description	(MAX16010 - MAX16014) Overvoltage Protection/Detection Circuits
Datasheet	MAX16014 Datasheet
Note	This datasheet PDF includes multiple part numbers: MAX16014, MAX16010. Please refer to the document for exact specifications by model.

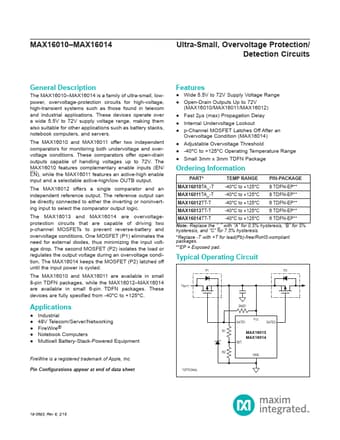

Additional preview pages of the MAX16014 datasheet.

Product details

Description

The MAX16010 MAX16014 is a family of ultra-small, lowpower, overvoltage protection circuits for high-voltage, high-transient systems such as those found in automotive, telecom, and industrial applications.

Features

complementary enable inputs (EN/EN), while the MAX16011 features an active-high enable input and a selectable active-high/low OUTB output. The MAX16012 offers a single comparator and an independent reference output. The reference output can be directly connected to either the inverting or noninverting input to select the comparator output logic. The MAX16013 and MAX16014 are overvoltage protection circuits that are capable of driving two p-channel MOSFETs to prevent reverse-battery and overvolta.
