MAX16016, MAX16020 (MAX160xx) Low-Power uP Supervisory Circuits

MAX16016 Description

19-4145; Rev 2; 10/08 www.DataSheet4U.com Low-Power µP Supervisory Circuits with Battery-Backup Circuit and Chip-Enable Gating General .
The MAX16016/MAX16020/MAX16021 supervisory circuits monitor power supplies, provide battery-backup control, and chip-enable (CE) gating to write prote.

MAX16016 Features

* section. The MAX16016/MAX16020/MAX16021 operate from a 1.53V to 5.5V supply voltage and offer fixed reset thresholds for monitoring 5V, 3.3V, 3V, 2.5V, and 1.8V systems. Each device is available with either a pushpull or open-drain reset output. The MAX16016/MAX16020/MAX16021 are available in small

MAX16016 Applications

* Main/Backup Power for RTCs, CMOS Memories Industrial Control GPS Systems Set-Top Boxes Point-of-Sale Equipment Portable/Battery Equipment Pin Configurations CEOUT 14 TOP VIEW CEIN VCC 16 BATT MR PFI WDI 1 2 15 13 12 11 RESET GND PFO WDO + MAX16020 3 4 5 LL 6 BATT_TEST 7 BATTOK
* EP 8 BATTO

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MAX16016, MAX16020. Please refer to the document for exact specifications by model.

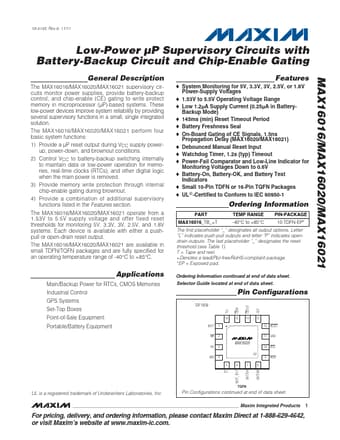

datasheet Preview Page 2 datasheet Preview Page 3
