MAX16023 - Battery-Backup Circuits

Description

The MAX16023/MAX16024 low-power battery-backup circuits with a regulated output are capable of delivering up to 100mA output current.

The MAX16023/MAX16024 include a low-dropout regulator, a microprocessor (µP) reset circuit, and a battery switchover circuit.

Features

  • include a manual reset, a power-fail comparator, and a battery-on indicator. These devices reduce the number of external components to minimize board space and improve reliability. The MAX16023/MAX16024 are ideally suited for providing power for backing up critical memory such as static random-access memory (SRAM) or real-time clocks (RTCs). The regulated output is powered by VCC when it is present and switches over to the backup power during brownout. The MAX16023/MAX16024 accept an input volta.

📥 Download Datasheet

Datasheet preview – MAX16023

Datasheet Details

Part number MAX16023
Manufacturer Maxim Integrated Products
File Size 264.16 KB
Description Battery-Backup Circuits
Datasheet download datasheet MAX16023 Datasheet
Additional preview pages of the MAX16023 datasheet.

📁 Similar Datasheet

  • MAX1602 - Single-Channel CardBus and PCMCIA VCC/VPP Power-Switching Network (Maxim)
  • MAX160 - uP Compatible 8 Bit A/D Converter (Maxim)
  • MAX1600 - Dual-Channel CardBus and PCMCIA VCC/VPP Power-Switching Networks (Maxim)
  • MAX1601 - Dual-Channel CardBus and PCMCIA Power Switches with SMBus Serial Interface (Maxim)
  • MAX1603 - Dual-Channel CardBus and PCMCIA VCC/VPP Power-Switching Networks (Maxim)
  • MAX16031 - EEPROM-Based System Monitors (Maxim Integrated)
  • MAX16032 - EEPROM-Based System Monitors (Maxim Integrated)
  • MAX1604 - Dual-Channel CardBus and PCMCIA Power Switches with SMBus Serial Interface (Maxim)
  • MAX1605 - 30V Internal Switch LCD Bias Supply (Maxim)
  • MAX1606 - 28V Internal Switch LCD Bias Supply (Maxim)
Other Datasheets by Maxim Integrated Products
  • MAX16020 - (MAX160xx) Low-Power uP Supervisory Circuits
  • MAX16021 - (MAX160xx) Low-Power uP Supervisory Circuits
  • MAX16024 - Battery-Backup Circuits
  • MAX16025 - Sequencing/Supervisory Circuits
  • MAX16026 - Sequencing/Supervisory Circuits
  • MAX16027 - Sequencing/Supervisory Circuits
  • MAX16028 - Sequencing/Supervisory Circuits
  • MAX16029 - Sequencing/Supervisory Circuits

Full PDF Text Transcription

Click to expand full text

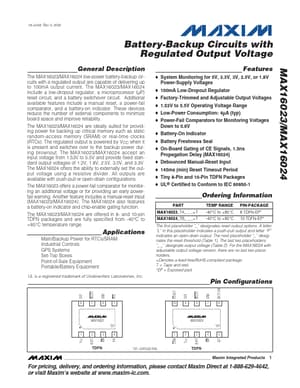

MAX16023/MAX16024 19-4249; Rev 0; 8/08 Battery-Backup Circuits with Regulated Output Voltage General Description The MAX16023/MAX16024 low-power battery-backup circuits with a regulated output are capable of delivering up to 100mA output current. The MAX16023/MAX16024 include a low-dropout regulator, a microprocessor (µP) reset circuit, and a battery switchover circuit. Additional available features include a manual reset, a power-fail comparator, and a battery-on indicator. These devices reduce the number of external components to minimize board space and improve reliability. The MAX16023/MAX16024 are ideally suited for providing power for backing up critical memory such as static random-access memory (SRAM) or real-time clocks (RTCs).
