MAX16053 - High-Voltage Adjustable Sequencing/Supervisory Circuits

This page provides the datasheet information for the MAX16053, a member of the MAX16052 High-Voltage Adjustable Sequencing/Supervisory Circuits family.

Description

The MAX16052/MAX16053 are a family of small, lowpower, high-voltage monitoring circuits with sequencing capability.

These miniature devices offer very wide flexibility with an adjustable voltage threshold and an external capacitor-adjustable time delay.

Features

  • o 1.8% Accurate Adjustable Threshold Over Temperature o Open-Drain (28V Tolerant) Output Allows Interfacing to 12V Intermediate Bus Voltage o Operates from VCC of 2.25V to 16V o Low Supply Current (18µA typ) o Capacitor-Adjustable Delay o Active-High Logic-Enable Input o Fully Specified from -40°C to +125°C o Small 6-Pin SOT23 Package MAX16052/MAX16053 Ordering Information PART MAX16052AUT+T MAX16053AUT+T OUTPUT Open-Drain Push-Pull.

📥 Download Datasheet

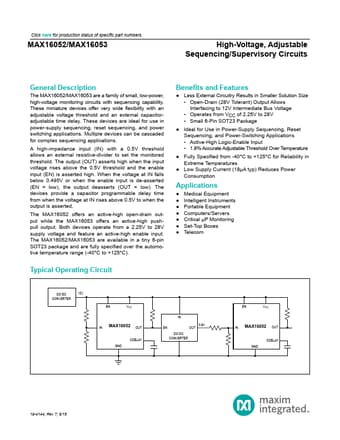

Datasheet preview – MAX16053
