MAX16074 - uP Supervisory Circuits in 4-Bump (1mm x 1mm) Chip-Scale Package

This page provides the datasheet information for the MAX16074, a member of the MAX16072 uP Supervisory Circuits in 4-Bump (1mm x 1mm) Chip-Scale Package family.

Description

The MAX16072/MAX16073/MAX16074 ultra-small, ultralow-power, microprocessor (µP) supervisory circuits feature a precision band-gap reference, comparator, and internally trimmed resistors that set the threshold voltage.

Features

  • MAX16072/MAX16073/MAX16074 Ordering Information PART MAX16072RS_ _D_+ MAX16073RS_ _D_+ RESET OUTPUT TYPE Push-Pull, Active-Low Push-Pull, Active-High.

📥 Download Datasheet

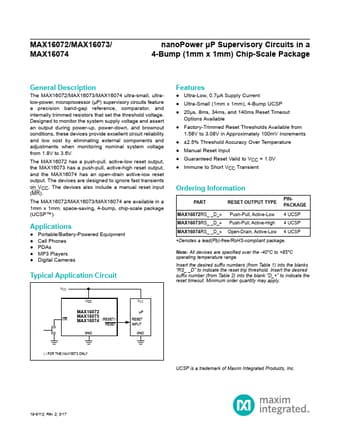

Datasheet preview – MAX16074
