MAX16838

High-Brightness LED Driver

Maxim Integrated Products

MAX16838 Features

* an adaptive output-voltage adjustment scheme that minimizes the power dissipation in the LED current sink paths. The MAX16838 can be combined with the MAX15054 to achieve a buck-boost LED driver with two integrated current sinks. The channel current is adjustable from 20mA to 150mA using an external

MAX16838 General Description

The MAX16838 is a dual-channel LED driver that integrates both the DC-DC switching boost regulator and two 150mA current sinks. A current-mode switching DC-DC controller provides the necessary voltage to both strings of HB LEDs. The MAX16838 accepts a wide 4.75V to 40V input voltage range and direct.

MAX16838 Datasheet (463.58 KB)

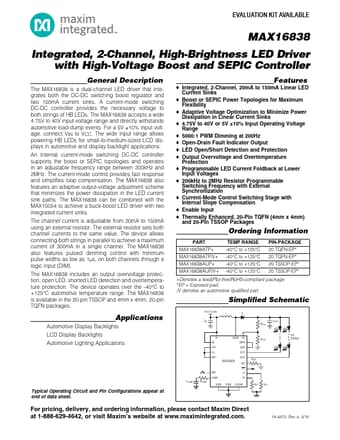

MAX16838 Datasheet Preview — Preview of MAX16838 PDF

Datasheet Details

Part number:

MAX16838

Manufacturer:

Maxim Integrated ↗ Products

File Size:

463.58 KB

Description:

High-brightness led driver.
EVALUATION KIT AVAILABLE MAX16838 Integrated, 2-Channel, High-Brightness LED Driver with High-Voltage Boost and SEPIC Controller General Descriptio.
