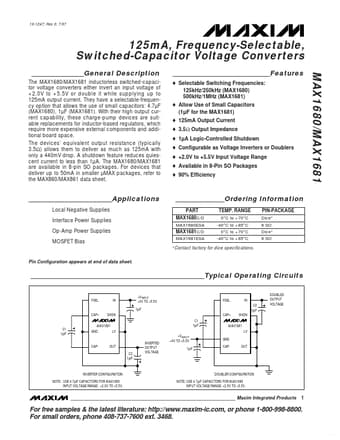

Part number: MAX1680
Manufacturer: Maxim
File Size: 121.27KB
Download: 📄 Datasheet
Description: Switched-Capacitor Voltage Converters
o Selectable Switching Frequencies: 125kHz/250kHz (MAX1680) 500kHz/1MHz (MAX1681) o Allow Use of Small Capacitors (1µF for the MAX1681) o 125mA Output Current o 3.5Ω Outp.
Local Negative Supplies Interface Power Supplies Op-Amp Power Supplies MOSFET Bias
______________Ordering Information
P.
The MAX1680/MAX1681 inductorless switched-capacitor voltage converters either invert an input voltage of +2.0V to +5.5V or double it while supplying up to 125mA output current. They have a selectable-frequency option that allows the use of small capa.
