Part number: MAX16800
Manufacturer: Maxim Integrated (https://www.analog.com/) Products
File Size: 197.95KB
Download: 📄 Datasheet
Description: Adjustable Linear High-Brightness LED (HB LED) Driver
include a 5V regulated output and short-circuit and thermal protection. The MAX16800 is available in a thermally enhanced, 5mm x 5mm, 16-pin TQFN package and is specified.
requiring high-voltage input and is able to withstand automotive load-dump events up to 40V. An on-board pass element mi.

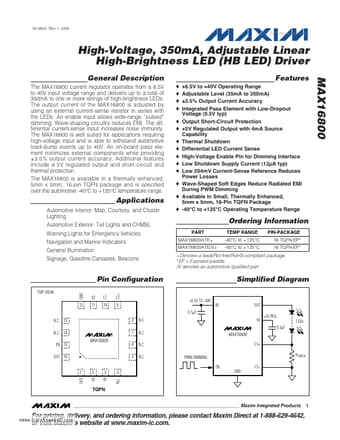

The MAX16800 current regulator operates from a 6.5V to 40V input voltage range and delivers up to a total of 350mA to one or more strings of high-brightness LEDs. The output current of the MAX16800 is adjusted by using an external current-sense resis.
