MAX16802A, MAX16801A, Offline and DC-DC PWM Controllers

19-3880; Rev 2; 1/10 KIT ATION EVALU E L B A AVAIL www.DataSheet4U.com Offline and DC-DC PWM Controllers for High-Brightness LED Drivers General De.
Features. Suitable for Buck, Boost, Flyback, SEPIC, and Other Topologies. Up to 50W or Higher Output Power. Universal Offli.

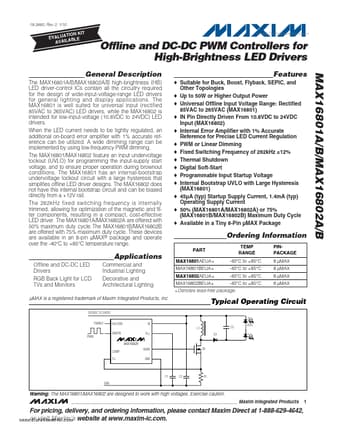

datasheet Preview Page 1 from Datasheet4u.com

MAX16801A_MaximIntegratedProducts.pdf

MAX16802A Datasheet Preview — This datasheet PDF includes multiple part numbers: MAX16802A, MAX16801A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MAX16802A, MAX16801A

Manufacturer:

Maxim Integrated ↗ Products

File Size:

237.45 KB

Description:

Offline and DC-DC PWM Controllers

Note:

This datasheet PDF includes multiple part numbers: MAX16802A, MAX16801A.
Please refer to the document for exact specifications by model.

Features

* Suitable for Buck, Boost, Flyback, SEPIC, and Other Topologies
* Up to 50W or Higher Output Power
* Universal Offline Input Voltage Range: Rectified 85VAC to 265VAC (MAX16801)
* IN Pin Directly Driven From 10.8VDC to 24VDC Input (MAX16802)
* Internal Error A

Applications

* The MAX16801 is well suited for universal input (rectified 85VAC to 265VAC) LED drivers, while the MAX16802 is intended for low-input-voltage (10.8VDC to 24VDC) LED drivers. When the LED current needs to be tightly regulated, an additional on-board error amplifier with 1% accurate reference can be
