MAX17126 - Multi-Output Power Supplies

Datasheet Summary

Description

The MAX17126/MAX17126A generate all the supply rails for thin-film transistor liquid-crystal display (TFT LCD) TV panels operating from a regulated 12V input.

Features

  • high output current (Q200mA), fast slew rate (45V/Fs), wide bandwidth (20MHz), and rail-to-rail outputs. Also featured in the MAX17126/MAX17126A is a highaccuracy, high-voltage adjustable reference for gamma correction. The MAX17126/MAX17126A are available in a small (7mm x 7mm), ultra-thin (0.8mm), 48-pin thin QFN package and operate over the -40NC to +85NC temperature range. LCD TV Panels.

📥 Download Datasheet

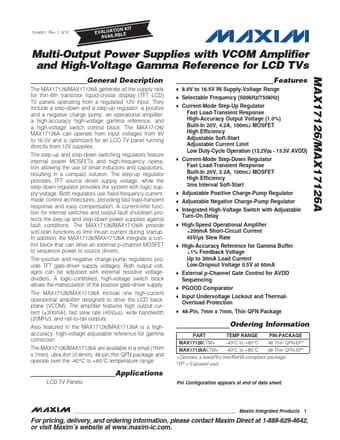

Datasheet preview – MAX17126

Datasheet Details

Part number MAX17126
Manufacturer Maxim Integrated Products
File Size 2.20 MB
Description Multi-Output Power Supplies
Datasheet download datasheet MAX17126 Datasheet
Additional preview pages of the MAX17126 datasheet.

📁 Similar Datasheet

  • MAX17126B - Multi-Output Power Supplies (Maxim Integrated)
  • MAX1712 - High-Speed / Digitally Adjusted Step-Down Controllers (Maxim)
  • MAX1710 - High-Speed / Digitally Adjusted Step-Down Controllers (Maxim)
  • MAX17103 - DC-DC Converter (Maxim Integrated)
  • MAX17105 - 8-String WLED Driver (Maxim)
  • MAX17108 - 10-Channel High-Voltage Scan Driver and VCOM Amplifier (Maxim)
  • MAX17109 - High-Voltage Scan Driver (Maxim Integrated)
  • MAX1711 - High-Speed / Digitally Adjusted Step-Down Controllers (Maxim)
  • MAX17113 - Multiple-Output Power Supply (Maxim Integrated)
  • MAX17116 - Dual-Output DC/DC Power Supply (Maxim)
Other Datasheets by Maxim Integrated Products

Full PDF Text Transcription

Click to expand full text
MAX17126/MAX17126A 19-4681; Rev 1; 3/10 EVAALVUAAILTAIOBNLEKIT Multi-Output Power Supplies with VCOM Amplifier and High-Voltage Gamma Reference for LCD TVs General Description The MAX17126/MAX17126A generate all the supply rails for thin-film transistor liquid-crystal display (TFT LCD) TV panels operating from a regulated 12V input. They include a step-down and a step-up regulator, a positive and a negative charge pump, an operational amplifier, a high-accuracy high-voltage gamma reference, and a high-voltage switch control block. The MAX17126/ MAX17126A can operate from input voltages from 8V to 16.5V and is optimized for an LCD TV panel running directly from 12V supplies.
