MAX17435

High-Frequency Low-Cost SMBus Chargers

MAX17435 Features

* S Low-Cost SMBus Charger S High Switching Frequency (0.85MHz/0.5MHz) S Internal Boost Switches S SMBus-Programmable Charge Voltage, Input Current Limit, Charge Current, Relearn Voltage, and Digital IINP Readback S Single-Point Compensation S Automatic Selection of System Power Source Adapter n-Chann

MAX17435 General Description

The MAX17435/MAX17535 integrated multichemistry battery-charger ICs simplify construction of accurate and efficient chargers. The MAX17435/MAX17535 provide SMBusK-programmable charge current, charge voltage, input current limit, relearn voltage, and digital readback of the IINP voltage. The MAX17435.

MAX17435 Datasheet (777.49 KB)

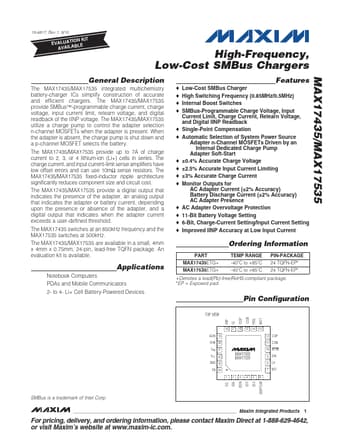

Preview of MAX17435 PDF

Datasheet Details

Part number:

MAX17435

Manufacturer:

Maxim Integrated ↗ Products

File Size:

777.49 KB

Description:

High-frequency low-cost smbus chargers.
