MAX1740

SIM/Smart Card Level Translators

MAX1740 Features

* MAX1740/MAX1741 Applications SIM Interface in GSM Cellular Telephones Smart Card Readers Logic Level Translation SPI™/QSPI™/MICROWIRE™ Level Translation PART MAX1740EUB MAX1741EUB Ordering Information TEMP. RANGE -40°C to +85°C -40°C to +85°C PIN-PACKAGE 10 µMAX 10 µMAX Typical Operating Circuit

MAX1740 General Description

The MAX1740/MAX1741 subscriber identity module (SIM)/smart card level translators provide level shifting and electrostatic discharge (ESD) protection for SIM and smart card ports. These devices integrate two unidirectional level shifters for the reset and clock signals, a bidirectional level shifter.

MAX1740 Datasheet (327.59 KB)

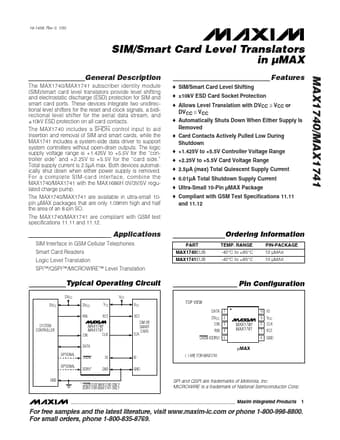

Preview of MAX1740 PDF

Datasheet Details

Part number:

MAX1740

Manufacturer:

Maxim

File Size:

327.59 KB

Description:

Sim/smart card level translators.
