MAX4355 - 16x16 Nonblocking Video Crosspoint Switch

Datasheet Summary

Description

The MAX4355 is a 16 ✕ 16 highly integrated video crosspoint switch matrix with input and output buffers.

This device operates from dual ±3V to ±5V supplies or from a single +5V supply.

Digital logic is supplied from an independent single +2.7V to +5.5V supply.

Features

  • o 16 ✕ 16 Nonblocking Matrix with Buffered Inputs and Outputs o Operates from ±3V, ±5V, or +5V Supplies o Individually Programmable Output Buffer Gain (AV = +1V/V or +2V/V) o High-Impedance Output Disable for Wired-OR Connections o 0.1dB Gain Flatness to 14MHz o -62dB Crosstalk, -110dB Isolation at 6MHz o 0.02%/0.12° Differential Gain/Differential Phase Error o Low 195mW Power Consumption (0.76mW per Point) MAX4355 Ordering Information PART MAX4355ECQ TEMP. RANGE -40°C to +85°C PIN-.

📥 Download Datasheet

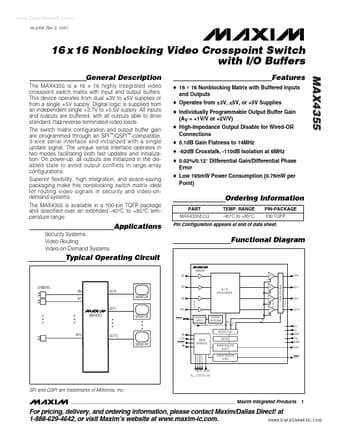

Datasheet preview – MAX4355

Datasheet Details

Part number MAX4355
Manufacturer Maxim Integrated Products
File Size 747.30 KB
Description 16x16 Nonblocking Video Crosspoint Switch
Datasheet download datasheet MAX4355 Datasheet
Additional preview pages of the MAX4355 datasheet.

📁 Similar Datasheet

  • MAX435 - Wideband Trasconductance Amplifiers (Maxim)
  • MAX4352 - Single-Supply Op Amps (Maxim)
  • MAX4353 - Single-Supply Op Amps (Maxim Integrated)
  • MAX4354 - Single-Supply Op Amps (Maxim Integrated)
  • MAX4358 - 32 x 16 Nonblocking Video Crosspoint Switch with On-Screen Display Insertion and I/O Buffers (Maxim)
  • MAX4359 - Video Crosspoint Switches (Maxim)
  • MAX430 - 15V Chopper-Stabilized Operational Amplifier (Maxim)
  • MAX4304 - Op Amps (Maxim)
  • MAX4305 - Op Amps (Maxim)
  • MAX4308 - Ultra-Low-Distortion Op Amps (Maxim Integrated)
Other Datasheets by Maxim Integrated Products
  • MAX4357 - 32 X 16 Nonblocking Video Crosspoint Switch
  • MAX4372F - High-Side Current-Sense Amplifier
  • MAX4372H - High-Side Current-Sense Amplifier
  • MAX4397 - Audio/Video Switch For Dual SCART Connectors
  • MAX4004 - High-Side Current Monitors
  • MAX4006 - High-Side Current Monitors
  • MAX4007 - High-Side Current Monitors
  • MAX4008 - High-Side Current Monitors

Full PDF Text Transcription

Click to expand full text
www.DataSheet4U.com 19-2208; Rev 0; 10/01 16 x 16 Nonblocking Video Crosspoint Switch with I/O Buffers General Description The MAX4355 is a 16 ✕ 16 highly integrated video crosspoint switch matrix with input and output buffers. This device operates from dual ±3V to ±5V supplies or from a single +5V supply. Digital logic is supplied from an independent single +2.7V to +5.5V supply. All inputs and outputs are buffered, with all outputs able to drive standard 75Ω reverse-terminated video loads. The switch matrix configuration and output buffer gain are programmed through an SPI™/QSPI™-compatible, 3-wire serial interface and initialized with a single update signal. The unique serial interface operates in two modes facilitating both fast updates and initialization.
