MAX4814E - DVI/HDMI 2:4 Low-Frequency Fan Out Switch

Description

The MAX4814E high-definition multimedia interface (HDMI) switch provides routing for low-frequency signals.

The MAX4814E operates from a single +5.0V ±10% supply voltage and is ideal for connecting multiple HDMI sources to multiple loads.

The MAX4814E is a bidirectional 2:4 HDMI switch.

Features

  • a mode input to control the device through an I2C interface or direct-control logic inputs. The MAX4814E is available in a 64-pin (10mm x 10mm) TQFP package and operates over the -40°C to +85°C extended temperature range.
  • +5V/Drain Switched.
  • HPD (Hot-Plug Detect) Switching.
  • DDC (Display Data Channel) Switching.
  • Direct Entry or I2C Control.
  • Low 1µA Quiescent Current.
  • ±6kV Human Body Model (HBM) ESD Protection on Switch I/Os.
  • Companio.

📥 Download Datasheet

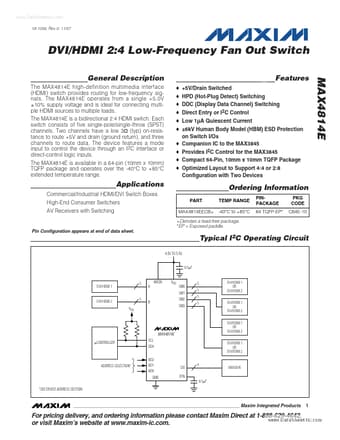

Datasheet preview – MAX4814E

Datasheet Details

Part number MAX4814E
Manufacturer Maxim Integrated Products
File Size 290.40 KB
Description DVI/HDMI 2:4 Low-Frequency Fan Out Switch
Datasheet download datasheet MAX4814E Datasheet
Additional preview pages of the MAX4814E datasheet.

📁 Similar Datasheet

  • MAX481 - Low-Power / Slew-Rate-Limited RS-485/RS-422 Transceivers (Maxim)
  • MAX481E - RS-485/RS-422 Transceivers (Maxim)
  • MAX480 - High-Precision / Low-Voltage / Micropower Op Amp (Maxim)
  • MAX4805 - Low-Noise Operational Amplifiers (Maxim Integrated)
  • MAX4805A - Low-Noise Operational Amplifiers (Maxim Integrated)
  • MAX4820 - +3.3V/+5V / 8-Channel / Cascadable Relay Drivers (Maxim)
  • MAX4821 - +3.3V/+5V / 8-Channel / Cascadable Relay Drivers (Maxim)
  • MAX483 - Overvoltage Protection Controllers with Status FLAG (Maxim)
  • MAX4834 - 250mA LDO Linear Regulators (Maxim Integrated)
  • MAX4835 - 250mA LDO Linear Regulators (Maxim Integrated)
Other Datasheets by Maxim Integrated Products
  • MAX4810 - High-Voltage Digital Pulsers
  • MAX4811 - High-Voltage Digital Pulsers
  • MAX4812 - High-Voltage Digital Pulsers
  • MAX4815 - SPST Analog Switches
  • MAX4816 - SPST Analog Switches
  • MAX4817 - SPST Analog Switches
  • MAX4818 - High-Bandwidth T1/E1 Dual-SPDT Switches/4:1 Muxes
  • MAX4819 - High-Bandwidth T1/E1 Dual-SPDT Switches/4:1 Muxes

Full PDF Text Transcription

Click to expand full text
www.DataSheet4U.com 19-1056; Rev 0; 11/07 DVI/HDMI 2:4 Low-Frequency Fan Out Switch General Description The MAX4814E high-definition multimedia interface (HDMI) switch provides routing for low-frequency signals. The MAX4814E operates from a single +5.0V ±10% supply voltage and is ideal for connecting multiple HDMI sources to multiple loads. The MAX4814E is a bidirectional 2:4 HDMI switch. Each switch consists of five single-pole/single-throw (SPST) channels. Two channels have a low 3Ω (typ) on-resistance to route +5V and drain (ground return), and three channels to route data. The device features a mode input to control the device through an I2C interface or direct-control logic inputs.
